The oscillation frequency is proportional to the inverse of the capacitance or resistance, whereas in an LC oscillator the frequency is proportional to inverse square root of the capacitance or inductance. So a much wider frequency range can be covered by a given variable capacitor in an RC oscillator..
Considering this, what is the difference between RC and LC oscillator?
The major difference between the LC and RC oscillator is that the frequency-determining device in the RC oscillator is not a tank circuit. Remember, the LC oscillator can operate with class A or C biasing because of the oscillator action of the resonant tank.
Similarly, what is the use of LC circuit? LC circuits are used either for generating signals at a particular frequency, or picking out a signal at a particular frequency from a more complex signal; this function is called a bandpass filter.
In this way, what is LC oscillator?

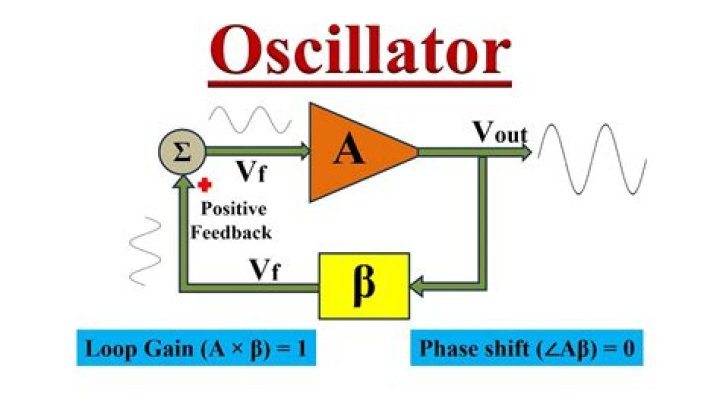

LC oscillator is a type of oscillator where a LC (inductor-capacitor) tank circuit is used for giving the required positive feedback for sustaining the oscillations. Typical applications of LC oscillators include RF signal generators, frequency mixers, tuners, sine wave generators, RF modulators etc.
What are the disadvantages of LC oscillators over RC oscillators?
Drawbacks of LC circuits These oscillators can also produce lower frequencies. As well, the circuit becomes neither bulky nor expensive. All the drawbacks of LC oscillator circuits are thus eliminated in RC oscillator circuits. Hence the need for RC oscillator circuits arise.
Related Question Answers
What is the principle of an oscillator?
There are many types of electronic oscillators, but they all operate according to the same basic principle: an oscillator always employs a sensitive amplifier whose output is fed back to the input in phase. Thus, the signal regenerates and sustains itself. This is known as positive feedback.Which oscillator is used for high frequency?
The LC Oscillator is therefore a “Sinusoidal Oscillator” or a “Harmonic Oscillator” as it is more commonly called. LC oscillators can generate high frequency sine waves for use in radio frequency (RF) type applications with the transistor amplifier being of a Bipolar Transistor or FET.Why do we use RC phase shift oscillator?
RC Phase shift oscillator is used for low-frequency generation (Up to few Hundred of kHz). Typically it is used for the audio frequencies. In RC Phase Shift Oscillator, the transistor or op-amp in inverting mode is used for the amplification. So, it provides the 180 degrees of phase shift.What is difference between amplifier and oscillator?
Difference between amplifier and oscillators. Amplifier is an electronic circuit which gives output as amplified form of input. Oscillator is an electronic circuit which gives output without application of input. The amplifier does not generate any periodic signal.What is Oscillator and types?
There are many types of oscillators, but can broadly be classified into two main categories – Harmonic Oscillators (also known as Linear Oscillators) and Relaxation Oscillators. Wien Bridge Oscillator. RC Phase Shift Oscillator. Hartley Oscillator. Voltage Controlled Oscillator.What are the applications of RC phase shift oscillator?
Applications of RC Phase Shift Oscillator: RC Phase Shift Oscillators are used in musical instruments, voice synthesis and in GPS units since they work at all audio frequencies.What is a tank circuit?
Also known as an inductor-capacitor circuit, an LC circuit, a resonator circuit or a tuned circuit, a tank circuit is a simple electrical circuit that uses magnetic resonance to store an electrical charge or produce an electromagnetic frequency.What is RC phase shift oscillator?
RC phase-shift oscillators use resistor-capacitor (RC) network (Figure 1) to provide the phase-shift required by the feedback signal. They have excellent frequency stability and can yield a pure sine wave for a wide range of loads. Ideally a simple RC network is expected to have an output which leads the input by 90o.Where are oscillators used?
Oscillator is used to generate a periodic wave form. High frequency Sine wave oscillators are used to generate RF carriers. They are also used to generate local frequency in superhetrodyne radio receivers. Low frequency oscillators are used to generate audio tones and to excite LVDTs.What does multivibrator mean?
A multivibrator is an electronic circuit used to implement a variety of simple two-state devices such as relaxation oscillators, timers and flip-flops. It consists of two amplifying devices (transistors, vacuum tubes or other devices) cross-coupled by resistors or capacitors.How do you create an oscillator?
You can make a very simple oscillator by connecting a capacitor and an inductor together. If you've read How Capacitors Work and How Inductors Work, you know that both capacitors and inductors store energy. A capacitor stores energy in the form of an electrostatic field, while an inductor uses a magnetic field.What is AQ factor?
The Q factor is a dimensionless parameter that indicates the energy losses within a resonant element which could be anything from a mechanical pendulum, an element in a mechanical structure, or within electronic circuit such as a resonant circuit. In particular Q is often used in association with an inductor.How does a local oscillator work?
In electronics, a local oscillator (LO) is an electronic oscillator used with a mixer to change the frequency of a signal. This frequency conversion process, also called heterodyning, produces the sum and difference frequencies from the frequency of the local oscillator and frequency of the input signal.What is resonance physics?
Resonance is the forced motion in tune with the nature oscillation frequency of a system, which is called the resonant frequency. Resonance is created when the pushing the system in the right direction that increases its amplitude. Every object has its own resonance.What is LC low pass filter?
Particularly in radio frequency applications, low pass filters are made in their LC form using inductors and capacitors. Typically they may be used to filter out unwanted signals that may be present in a band above the wanted pass band. Low pass filters are normally built up using a number of sections.Why LC oscillators are not used at low frequencies?
and if we want to design a oscillator for low frequency we have to choose the values of inductor and capacitor to be large . As we know large value capacitors are bulky and costly and hence they aren't used. This is the reason why we won't use LC oscillator for lower? frequency.What is RLC series circuit?
A RLC circuit (also known as a resonant circuit, tuned circuit, or LCR circuit) is an electrical circuit consisting of a resistor (R), an inductor (L), and a capacitor (C), connected in series or in parallel. This configuration forms a harmonic oscillator.What is the formula for resonance?
Since the circuit is at resonance, the impedance is equal to the resistor. Then, the peak current is calculated by the voltage divided by the resistance. The resonant frequency is found from Equation 15.5.5: f0=12π√1LC=12π√1(3.00×10−3H)(8.00×10−4F)=1.03×102Hz.What is resonance in a circuit?
resonance: In an electrical circuit, the condition that exists when the inductive reactance and the capacitive reactance are of equal magnitude, causing electrical energy to oscillate between the magnetic field of the inductor and the electric field of the capacitor.
