A split electrical outlet is an ordinary outlet that has the brass connection tab removed between the two hot terminals. This allows the outlet to have two distinct feeds, one for the top plug-in receptacle and one for the bottom..
In this manner, what is a split receptacle?
A split outlet is a duplex outlet, or receptacle, with one half of the outlet that has power all the time and one half that is controlled by a switch. If you have a bedroom that has no overhead light, chances are at least one of the receptacles in the room is a split receptacle.
Also Know, what is a kitchen receptacle? These small appliance branch circuits can supply receptacles in the kitchen as well as the pantry, breakfast room, dining room, or other similar areas where food is likely to be served. Kitchen and Dining Countertop Receptacle Location.
Besides, can a GFCI receptacle be split?
To answer the OP's question, yes you can use GFCI breakers. If you had a fuse panel you would have to either install a pair of faceless GFCI's somewhere or cut in a bigger box where the first split receptacle is and change it into 2 separate receptacles, making them both GFCI's.
How do you wire a split plug?
Codes may call for connecting both circuits to a double-pole breaker. That way an overload on one circuit shuts off both, deadening all wires in each box. When wiring a series of split-circuit receptacles, connect one outlet of each receptacle to the red wire and the other to the black wire.
Related Question Answers
Why are outlets upside down?
Because if a cord or wire were to fall down on a partially plugged in right-side up outlet you would short out between the hot and the neutral. When the outlet is "upside down" in the above situation the wire would touch ground first.How many outlets can be on a 20 amp circuit?
One rule of thumb is to assign a maximum draw of 1.5 amps to each receptacle, which allows for 10 receptacles on a 20-amp circuit.Should I pigtail my outlets?
As long as the receptacle is rated and UL-listed for feed-through wiring, as well as properly installed, it should be safe as intended by UL's Standard for Safety (UL 498), which covers receptacles. The pigtail method transfers the connection point from the receptacle to a wire nut.Do I need 20 amp outlets in kitchen?
Requirement: Provide at least two 20-amp, 120-volt circuits to supply power to GFCI (Ground Fault Circuit Interrupter) receptacles for countertop and eating areas. Why: The 20 amps are required (vs. 15 amp) for the higher power requirements found in kitchens. Think toaster ovens, blenders, and mixers.How do you wire a 20 amp breaker?
Run a separate 20-amp circuit to each bathroom and laundry room. Install a minimum of two 20-amp circuits for the kitchen. Protect the receptacles with a ground-fault circuit interrupter (GFCI) breaker or GFCI-style receptacles. Use 12-gauge cable for 20-amp circuits and 14-gauge for 15-amp.Can a 20 amp receptacle be used on a 15 amp circuit?
No, a 15A breaker will not trip at 16 amps, at least not for a long time. I can understand why a 15 amp receptacle shouldnt be used on a 20 amp (12AWG) service but a 20 amp receptacle should be able to handle the load safely. But a 15A receptacle CAN be used on a 20A circuit, IF there is more than one.What is difference between outlet and receptacle?
Outlet - The National Electrical Code (NEC) defines it as “a point on the wiring system at which current is taken to supply utilization equipment.” Receptacle - “A contact device installed at the outlet for connection of an attachment plug,” according to the NEC. So, essentially, a receptacle is one type of outlet.Do GFCI outlets need to be on their own circuit?
No GFCI's do not require a dedicated circuit. However, they are normally in circuits that are required to have ground fault protection. The way I wire them, is to have the GFCI as the first plug, then chain and protect all the plugs downstream from the GFCI.Can you daisy chain GFCI outlets?
You can daisy-chain GFCIs if you really want to. They will still protect just fine. If you put the GFCI outlet on the already-protected GFCI circuit hoping only the nearer one will trip, and save you the walk down to the service panel well, you just wasted your money.How many GFCI outlets can be on a circuit?
You only need 1 GFCI outlet per circuit (assuming it's at the beginning of the line and the rest of the outlets are loads).What is a split plug receptacle?
Switched Split Receptacle Wiring Diagrams Always hot. A duplex receptacle has removable metal tabs that electrically connect the two terminals together on each side of the receptacle. A split receptacle has one or both tabs removed to isolate each terminal from the other.Can two separate circuits share a neutral?
If the two circuits are from the same line, the main danger is overloading the neutral with too much current. A fire hazard as the neutral is not connected to a breaker. In short, stay safe and run separate neutrals for each circuit. you definitely do not want to share neutrals from different circuits.What is the maximum distance between 2 kitchen countertop receptacles?

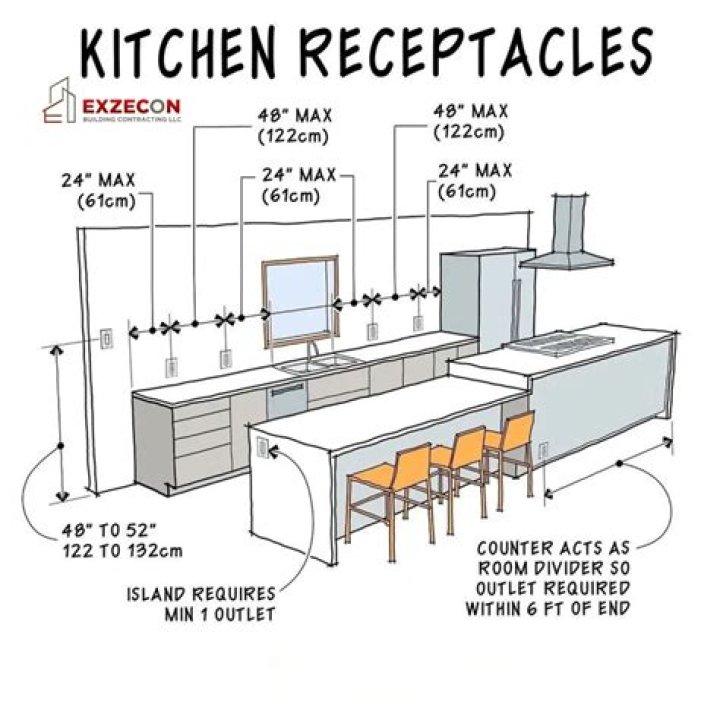

The requirement for counter spaces can be thought of as the “2-foot rule.” Since the maximum distance to a countertop receptacle is 2 feet (600 millimeters), the maximum distance between two receptacles is doubled. Therefore, the maximum distance between two receptacles for counter spaces is 4 feet (1.2 meters).How many electrical circuits are needed for a kitchen?
There are at least seven circuits that are needed in a kitchen and that is the minimum, but by no means the only, circuits you may want to add for your convenience. There is a 15-amp basic lighting circuit, two 20-amp small appliance circuits, and five dedicated circuits for specific appliances.How many outlets can be on a breaker?
By rule of thumb you would stick with 8 to 10 outlets and or lights per breaker. Now this is of course they are 120 volts 60 Hz (USA or Canada).Can two separate circuits be in the same junction box?
2 Answers. The answer is yes you can have 2 separate circuits in the same box (they can have a splice also but not needed in your case). The only concern would be the total box fill.Should I wire outlets in series or parallel?
It's common to describe household wall receptacles that are wired together using the device terminals as wired in series. But, in fact, all household receptacles are always wired in parallel, and never in series. In a series circuit, current must pass through a load at each device.How do you wire a light switch and outlet in the same box?
Connecting Separate Devices in a Double-Gang Box The same three options exist when wiring separate devices. To have the switch control just the outlet, connect the hot circuit wire to one of the switch terminals, and then connect the other switch terminal to the brass terminal on the outlet with a short jumper wire.
