Impact test determines the amount of energy absorbed by a material during fracture. This absorbed energy is a measure of a given material's toughness and acts as a tool to study temperature-dependent brittle-ductile transition. It is to determine whether the material is brittle or ductile in nature..
Likewise, what does Charpy impact test measure?
Charpy impact test. The Charpy impact test, also known as the Charpy V-notch test, is a standardized high strain-rate test which determines the amount of energy absorbed by a material during fracture. The test was pivotal in understanding the fracture problems of ships during World War II.

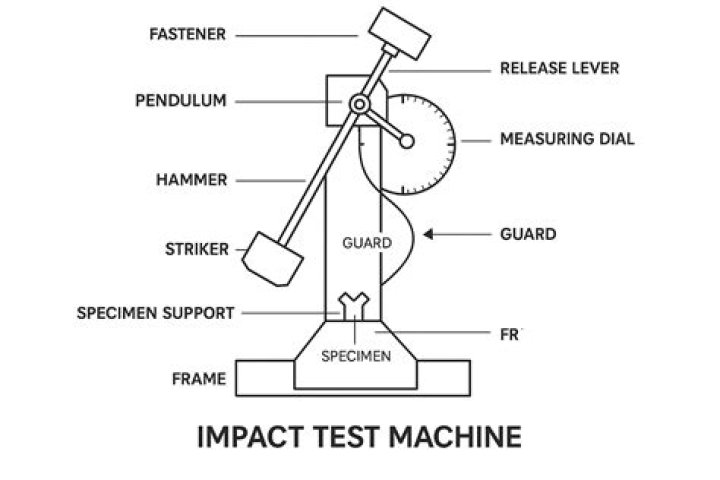

Also Know, how do you test impact strength? The Izod impact strength test is an ASTM standard method of determining the impact resistance of materials. A pivoting arm is raised to a specific height (constant potential energy) and then released. The arm swings down hitting a notched sample, breaking the specimen.
Correspondingly, what physical property is determined by the impact test?
The physical property determined from impact test is the resistance of a material due to suddenly applied loads or prepared clutches.
What are the main uses of the Charpy test?
The Charpy Test. While most commonly used on metals, it is also used on polymers, ceramics and composites. The Charpy test is most commonly used to evaluate the relative toughness or impact toughness of materials and as such is often used in quality control applications where it is a fast and economical test.
Related Question Answers
How is impact toughness calculated?
The impact toughness of a metal is determined by measuring the energy absorbed in the fracture of the specimen. This is simply obtained by noting the height at which the pendulum is released and the height to which the pendulum swings after it has struck the specimen .How is impact energy measured?
Impact and Energy Energy is defined as the ability to do work. During an impact, an object's energy is converted into work. The energy of a moving object is called kinetic energy, and is equal to one half of the object's mass times the square of its velocity: KE = 0.5 × m × v^2.What are the types of impact tests?
There are basically two types of impact tests: pendulum and drop weight. Izod, Charpy, and tensile impact are the most common of the pendulum type tests.What is the purpose of Charpy impact test?
The Charpy impact test measures the energy absorbed by a standard notched specimen while breaking under an impact load. The Charpy impact test continues to be used as an economical quality control method to determine the notch sensitivity and impact toughness of engineering materials.How is creep measured?
Creep testing is conducted using a tensile specimen to which a constant stress is applied at a constant temperature, often by the simple method of suspending weights from it. The test is recorded on a graph of strain versus time.What is impact toughness?
Impact toughness is the ability of a weld to permanently deform while absorbing energy before fracturing, specifically when stress is applied rapidly—typically, in under one second. In simpler terms, it's how much rapid-impact energy a weld can take before it cracks.What is toughness of a material?
In materials science and metallurgy, toughness is the ability of a material to absorb energy and plastically deform without fracturing. One definition of material toughness is the amount of energy per unit volume that a material can absorb before rupturing. Toughness requires a balance of strength and ductility.What are Charpy values?
The impact test helps measure the amount of energy absorbed by the specimen during fracture. The standard Charpy-V notch specimen is 55mm long, 10mm square and has a 2mm deep notch with a tip radius of 0.25mm machined on one face.What is the importance of impact test?
Impact test determines the amount of energy absorbed by a material during fracture. This absorbed energy is a measure of a given material's toughness and acts as a tool to study temperature-dependent brittle-ductile transition. It is to determine whether the material is brittle or ductile in nature.Why is impact strength important?
The impact strength is regarded as the work required for the fracture of the specimen. Impact strength is one of the most important strength characteristics of a metal. When the test temperature is lowered over a series of tests, a sharp drop in impact strength indicates the brittle temperature of the material.What is impact strength and how is it measured?
Charpy impact test The arm is released and its hammer end is allowed to hit the centre of the specimen. The impact strength of the material is determined by the amount of energy needed to break or fracture the specimen [5].How do you measure tensile strength?
In a simple tensile test, a sample is typically pulled to its breaking point to determine the ultimate tensile strength of the material. The amount of force (F) applied to the sample and the elongation (∆L) of the sample are measured throughout the test.Where are impact tests required?
Impact testing is required if the MDMT is below: -55°F, -48°C unless the above ratio is 0.35 or less, then its -155°F, -104°C.What do you mean by tensile strength?
Tensile strength. The tensile strength of a material is the maximum amount of tensile stress that it can take before failure, for example breaking. There are three typical definitions of tensile strength: Yield strength - The stress a material can withstand without permanent deformation.What is impact test in steel?
The impact test is a method for evaluating the toughness and notch sensitivity of engineering materials. It is usually used to test the toughness of metals, but similar tests are used for polymers, ceramics and composites. Metal industry sectors include Oil and Gas, Aerospace, Power Generation, Automotive, and Nuclear.Is tensile strength a physical property?
Physical Properties. A variety of properties are tested such as tensile strength, flexural strength, impact strength, density, hardness, water absorption, vapor transmission, and peel resistance.Is standard for impact testing?
Impact Strength Testing or Charpy Impact Testing is an ASTM standard method for determining impact energy. Impact tests are used for studying the toughness of material, which represents the absorbed energy during plastic deformation of the materials.What is impact value?
The aggregate impact value is a measure of resistance to sudden impact or shock, which may differ from its resistance to gradually applied compressive load.What is impact strength of polymers?
Impact strength is a technical parameter characterising the resistance of polymers to impact loads and expressed by the work expended on impact fracture [1].
