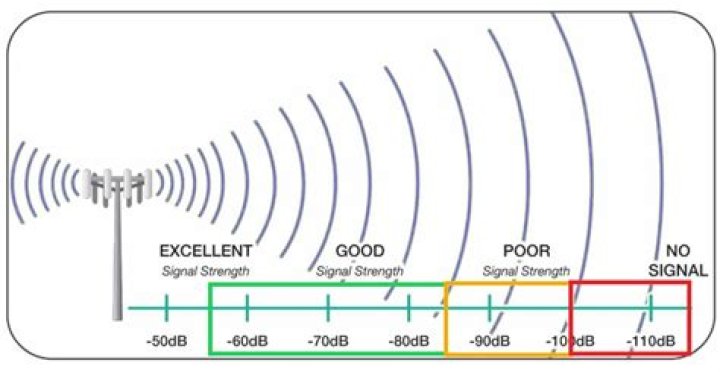

SNR directly impacts the performance of a wireless LAN connection. A higher SNR value means that the signal strength is stronger in relation to the noise levels, which allows higher data rates and fewer retransmissions – all of which offers better throughput.

How does the SNR signal to noise ratio affect the quality of a digital image?

Signal to Noise Ratio is one factor that can have a significant impact on Image quality. In general the higher the signal level the more useful information there is within the image and it is therefore weighted more heavily than the lower level noise.

How does SNR affect image quality?

Field strength and SNR MRI systems using higher field strengths produce higher SNR images in comparison to the low field strength systems. Along with higher SNR images, high field strength MRI systems will also be able to produce high spatial resolution images in a shorter amount of time.

What is a good SNR signal?

Generally, a signal with an SNR value of 20 dB or more is recommended for data networks where as an SNR value of 25 dB or more is recommended for networks that use voice applications.

What is SNR in signal processing?

In terms of definition, SNR or signal-to-noise ratio is the ratio between the desired information or the power of a signal and the undesired signal or the power of the background noise.

Is higher CNR better?

As the CNR is increased the objects will be more easily visualized with respect to the background.

What is the difference between CNR and SNR?

C/N Ratio (CNR) stands for Carrier to Noise Ratio. It is measured after modulation. S/N Ratio (SNR) stands for Signal to Noise Ratio. It is measured before modulation.

Why is high SNR better?

SNR directly impacts the performance of a wireless LAN connection. A higher SNR value means that the signal strength is stronger in relation to the noise levels, which allows higher data rates and fewer retransmissions – all of which offers better throughput.

Why is SNR important?

The signal-to-noise ratio (SNR) plays a critical role in any measurement but is particularly important in fisheries acoustics where both signal and noise can change by orders of magnitude and may have large variations.

Why is my SNR low?

It depends on many different things and it varies in real time. Fundamentally, loss of signal and/or increase in noise. If your SNR is always low and has always been low, it may simply be near the distance limit. Then again, it could be that it’s always run over a lousy chunk of cable or bad splice.

Article first time published on

What is SNR in image?

Definition. Throughout the Huygens Software the Signal-to-Noise ratio (SNR or S/N) of a digital microscopic image is defined as the square root of the number of photons in the brightest part of the image.

How do you increase signal to noise ratio?

1. Remove Extra WiFi networks. This is especially true if this is a business environment. …
2. Check for “Noisy” devices. Take a look at the devices around the WiFi router. …
3. Turn off unneeded signals.

How does voxel volume affect signal to noise ratio?

Signal-to-noise ratio is proportional to the volume of the voxel and to the square root of the number of averages and phase steps (assuming constant-sized voxels). Since averaging and increasing the phase steps takes time, SNR is related closely to the acquisition time.

How does SNR affect throughput?

Effect of bandwidth on SNR As the noise spreads out over all frequencies it is found that the wider the bandwidth of the receiver, the greater the level of the noise. Accordingly the receiver bandwidth needs to be stated.

Why SNR is important in communication system?

Signal-to-Noise Ratio Explained A signal-to-noise ratio compares a level of signal power to a level of noise power. It’s most often expressed as a measurement of decibels (dB). Higher numbers generally mean a better specification since there’s more useful information (the signal) than unwanted data (the noise).

Is SNR a dB?

SNR is expressed in decibels. It is calculated by dividing the signal power by the noise power. A ratio bigger than 1 dB indicates that the signal is more than the noise. … When an audio component for example has a SNR of 100 dB, it means that the level of the audio signal is 100 dB higher than the level of the noise.

What is the difference between EB No and SNR?

Eb/N0 is equal to the SNR divided by the “gross” link spectral efficiency in (bit/s)/Hz, where the bits in this context are transmitted data bits, inclusive of error correction information and other protocol overhead.

How is contrast to noise ratio calculated?

Contrast-to-noise ratio (CNR) is just the ratio of the estimated contrast and noise: CNR = C/N.

What is SNR xray?

Signal-to-noise ratio (SNR) is a generic term which, in radiology, is a measure of true signal (i.e. reflecting actual anatomy) to noise (e.g. random quantum mottle). A lower signal-to-noise ratio generally results in a grainy appearance to images.

How do you increase your CNR?

To improve the contrast to noise ratio (CNR), the difference in signal intensity between adjacent structures needs to be enhanced. This is achieved by exploiting the intrinsic and extrinsic contrast parameters to either enhance signal from the relevant tissues, or decrease the signal from the normal tissues.

What affects CNR?

Factors influencing CNR: T1, T2 and proton density weighted images. • Pulse sequences (gradient echo, spin echo) Demonstrations on the scanner.

What is good SNR margin?

Signal-to-noise ratio (SNR) Typical values are: 10dB and lower is bad. 11db – 20dB is OK. 20dB – 28dB is excellent.

What affects SNR margin?

SNR = signal / noise , so higher signal, or/and lower noise would increase SNR. SNR margin = signal – noise (The difference between background noise and useful signal), so again, higher SNR margin also means that you have cleaner/stronger signal.

What causes SNR margin?

For a number of reasons (such as line drops due to thunderstorms or increased errors on the line due to radio interference), the exchange equipment can increase the target SNR margin. As the target SNR margin is raised, so downlink connection speeds are substantially reduced.

How is SNR image measured?

SNR can be expressed as a simple ratio (S/N) or in decibels (dB), where SNR (dB) = 20 log10(S/N). Doubling S/N corresponds to increasing SNR (dB) by 6.02 dB.

Is the ratio of input signal to noise ratio to the output signal to noise ratio of the device?

Explanation: Noise figure is defined as the ratio of input signal to noise ratio to the output signal to noise ratio of a system or a receiver.

How do you find the image SNR in Matlab?

1. Get the signal – that’s your “true” noiseless image.
2. Get the noise – that’s your actual noisy image minus the “true” noiseless image.
3. Divide them element by element, then take the mean over the whole image.

How can we reduce SNR?

1. Quality of connecting wires: This is a very important factor which is instrumental in reducing noise in your network connection. …
2. Tightened connections: The connectors should be tightened properly. …
3. Sharp bends: The connecting wires should not be subjected to any sharp bends that cause the wire to turn at 900.

How does SNR affect spatial resolution?

The voxel size is a linear function of slice thickness and so also is SNR. The thinner the slice, the better the spatial resolution and the less the partial volume effect, with a lin- ear drop in SNR as a trade-off.

How does voxel size affect signal intensity?

One of the major factors that affects signal strength is the volume of the individual voxels. The signal intensity is proportional to the total number of protons contained within a voxel. Large voxels, that contain more protons, emit stronger signals and result in less image noise.

Does NEX affect spatial resolution?

With the same FOV, a finer matrix (i.e. a matrix consisting of more pixels) results in an improved spatial resolution (▶ Figs. 22 and 23). Conversely, a coarser matrix (i.e. one with fewer pixels) results in a poorer spatial resolution when the FOV is held constant (▶ Fig.
